Everything in detail

Yaris Cross Live specifications

View specifications

Space and Room

High-quality fabrics and soft ornamentation add pleasingly human touches to your interior, transforming the open cabin into an inviting space where everyone feels comfortable.

Exterior dimensions

Number Of Doors: 5
Length (mm): 4167 mm
Width (mm): 1765 mm
Height (mm): 1595 mm
Wheelbase (mm): 2560 mm
Front Tread (mm): 1530 mm
Rear Tread (mm): 1529 mm

Interior dimensions

Number Of Seats: 5 seats

Luggage compartment

Luggage Capacity (Up To Tonneau Cover) (litres): 350 litres
Luggage Compartment Height (Up To Roof) (mm): 852 mm
VDA luggage capacity, rear seat up (litres): 397 litres

Engine

Drive with pure emotion, powered by a high-performance engine that helps you take on any journey with confidence.

Environmental Performance

Euro Class emission: EURO 6 EB
Fuel Grade - Recommended: 95 or more (octane)
Euro Class: EURO 6 EB
Fuel Tank Capacity (l): 36 l
Sound Level Stationary (dB(A)): 70.0 dB(A)
Sound Level Drive By (dB(A)): 64.0 dB(A)
Fuel Combined WLTP (l/100 km): 4.4 l/100 km
CO2 Combined WLTP (g/km): 101 g/km

Performance

Maximum Speed (km/h): 170 km/h
Acceleration 0-100 km/h (secs): 11.2 seconds
Drag Coefficient: 0.35

Engine

Valve mechanism: DOHC four-valve roller rocker IN: VVT-iE EX: VVT-i
Fuel Injection System: Intake port (multi-point)
Displacement (cc): 1490 ccm
Maximum Output (kW@rpm): 85 kW@rpm
Maximum Torque (Nm@rpm): 141 Nm
Total System Output (DIN hp): 116 DIN hp
Electric Front Motor: Type: Permanent magnet synchronous motor
Maximum output (DIN hp): 116 DIN hp
Electric Front Motor: Maximum Torque (Nm): 141 Nm
Conventional engine output (DIN hp): 92 DIN hp
Hybrid Vehicle Battery: Type: Lithium-ion
Hybrid Vehicle Battery: Capacity Ah (hr): 4.3 Ah

Transmission

Transmission Type: CVT

Suspension

Suspension Front: Macpherson strut
Suspension Rear: Torsion beam

Brakes

Brakes Front: Ventilated disc 1-cylinder
Brakes Rear: Solid disc 1-cylinder

Weights & towing capacity

Gross Vehicle Weight (kg): 1690 kg
Kerb Weight (kg): 1190-1255 kg
Towing Capacity With Brakes (kg): 750 kg
Towing Capacity Without Brakes (kg): 550 kg
Kerb weight min (kg): 1190 kg

Safety

Find peace of mind as you drive with Toyota T-Mate. Whether you’re reversing into a parking space or approaching a busy junction, T-Mate makes sure you're always in safe hands wherever you go.

Rain sensor
Projector LED headlamps
Automatic High Beam (AHB)
Turning signal integrated in door mirrors
Brake Assist (BA)
Rear-view camera
Speed limiter
Anti-lock Braking System (ABS) with Electronic Brake force Distribution (EBD)
Emergency Brake-light Signal (EBS)
Road Sign Assist (RSA)
Hill-start Assist Control (HAC)
Tyre Pressure Warning System (TPWS)
Intrusion alarm
Immobiliser
High-mounted stop lamp (LED type)
Traction Control (TRC)
eCall emergency call system
Driver Attention Alert
Rear disc
Full-range Adaptive Cruise Control
Lane Trace Assist (LTA)
Pre-Collision System with Pedestrian and Cyclist Detection
Emergency Steering Assist on Pre-Collision system
Intelligent Adaptive Cruise Control (iACC)
Steering-assisted Vehicle Stability Control (S-VSC)
Rear combination lamps (LED & bulb)
Intersection Turn Assist on Pre-Collision system
Driver Monitoring Camera on Pre-Collision System
Emergency Driving Stop System (EDSS)
Turning signal (LED) with DRL integration
Acceleration suppression at low speed on Pre-Collision system (day)
Manual headlamp levelling

ISOFIX seat fixing
Rear seat belt reminder
Front passenger airbag on/off-switch
Front seat belt reminder
Driver & front passenger Whiplash Injury Lessening (WIL) seats
Rear headrests (3)
Adjustable rear headrests
Driver & passenger front airbag
Driver & passenger side airbag
Rear passenger side airbag
Driver central airbag

Styling

Make a statement with elegant design elements and eye-catching details to make your vehicle stand out from the crowd.

LED front light guide
Body-coloured front bumper
Body-coloured rear bumper
Body-coloured door handles
Black wheel arch moulding
Shark-fin antenna
Black lower front grille
Piano black insert on boot door
Black upper front grille
Piano black door mirrors

3-spoke leather steering wheel
Piano black insert on steering wheel
Piano black side air vent surrounds
Leather gear shift knob
Piano black surround on gear shift console
Fabric front door trim
Grey roof lining
Chrome surround on air conditioning buttons
Piano black insert on front interior door handles
Silver insert on side air vents
Default plastic rear door trim
Platinum deco line on upper dashboard
Silver deco line on front door trim

Performance

From road-ready handling to efficient acceleration – discover what makes the Toyota driving performance so special.

Drive Mode Selector
Rear spoiler

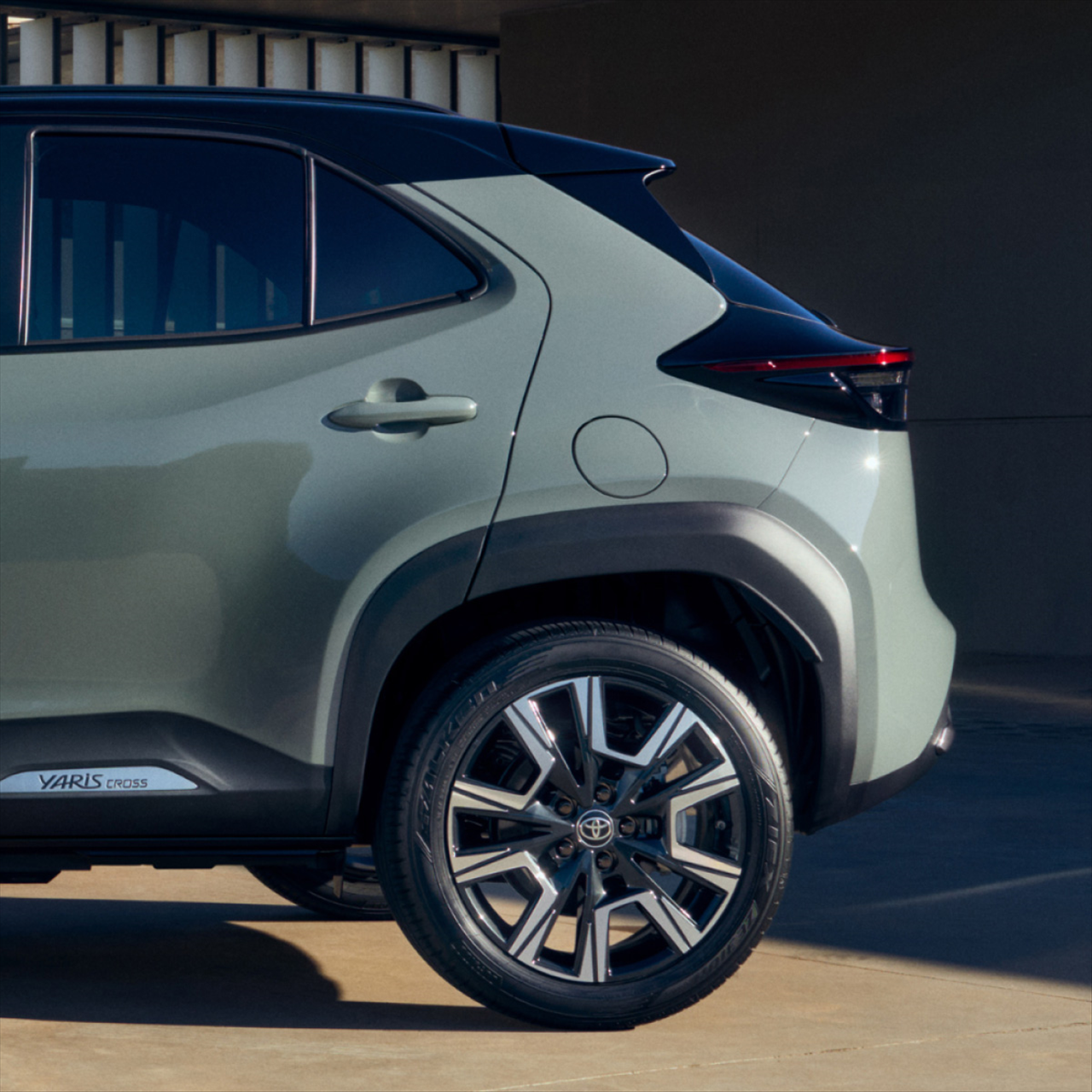

Wheels

Choose from Toyota's selection of premium wheels to suit your driving style.

Tyre repair kit

Comfort

Sit back and relax in a car so comfortable that it feels like home – from ample space to stretch your legs to heating that keeps you warm when it's cold outside.

Follow-me-home headlights
Dusk sensor
Automatic headlight cut-off
Headlight cut-off reminder
Standard opening of boot or tailgate
Power-adjustable door mirrors
Heated door mirrors
Automatically retractable door mirrors
Remote door lock
Smartphone remote door lock
Standard roof

Electronic parking brake
Digital tachometer
Electric Power Steering (EPS)
Electrochromatic rear-view mirror
Rear-view camera display in audio screen
Static guide lines on rear-view camera display
Automatic air conditioning
Pollen air filter
Central armrest
Height-adjustable driver seat
60:40 split-folding rear seats
Front power windows
Rear power windows
Auto up & down function on all power windows
Anti-jam protection on power windows
Power passenger window lock
Noise reduction layer on windshield
Centre room lamp (LED type)
Boot lamp
Mirror on driver sun visor
Mirror on passenger sun visor
Front 12V power outlet
Power door lock
Child safety door lock
Key reminder warning
Coloured TFT information displays
7" screen for information display
Gear Shift Indicator (GSI)
Audio switches on steering wheel
Information display switches on steering wheel
Telephone switch on steering wheel
Voice recognition switch on steering wheel
Adaptive Cruise Control switch on steering wheel
Lane Departure Alert switch on steering wheel
Speed Limiter switch on steering wheel
Adjustable Speed Limiter (ASL) switch on steering wheel
Automatic High Beam (AHB) on/off switch
Front overhead assist grips
Rear overhead assist grips
Engine noise insulation cover
Speed Limiter Information
Intermittent rear wiper
Manual tilting steering wheel
Manual telescopic steering wheel
Digital speedometer (km/h)
Intermittent wiper
Key starting system
Height-adjustable front passenger seat

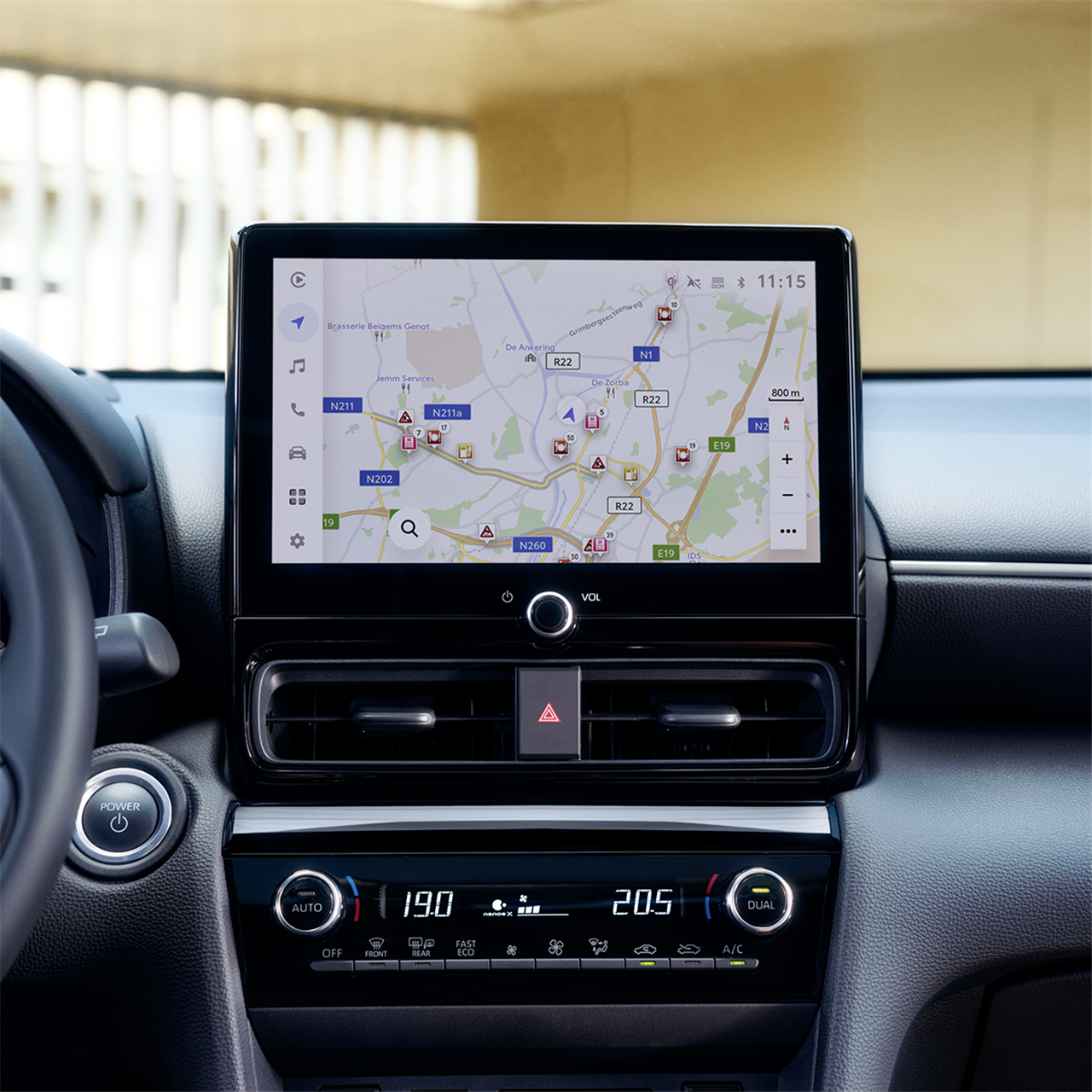

Multimedia

Experience an intuitive multimedia system that seamlessly delivers real-time information, making it easier than ever for you to focus on the road ahead.

Bluetooth® hands-free system
Digital Audio Broadcast (DAB)
6 speakers
9" multimedia display
MyToyota Connected Services
Wireless Smartphone Integration
Front USB Type-C connector
Front USB Type-C device charger
Toyota Touch® 3 multimedia system

Storage

This fantastic interior space offers plenty of room for all ‒ including ample legroom to comfortably stretch your legs, and a spacious boot to fit everything you’ll need.

Black roof rails
Pre-wiring for towing hook

Protection

The world places a lot of demand on your car, from rock chips and paint scratches to everyday weathering. Take care of the vehicle that drives your future with a protection package.

Trunk liner
Driver & front passenger fabric floor mats
Embroidered Yaris Cross logo on floor mats
Rear passenger fabric floor mats
