MPV 5 Doors (LWB)

RAV4 - GR SPORT - MPV 5 Doors (LWB)

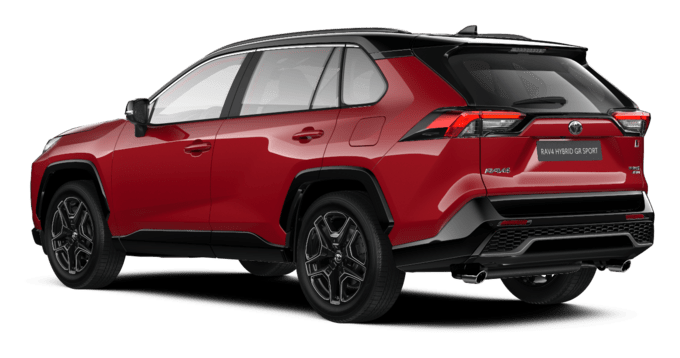

Flame Red with Attitude Black roof (2SC)

Starting from


Financing from

589,00 €/Month

Financing Details

Standard Engine

2.5 Petrol Hybrid Dynamic Force

Standard Warranty

Standard 3-year warranty

RAV4 - GR SPORT - MPV 5 Doors (LWB)


  • Length (mm)
    4620 mm
  • Width (mm)
    1855 mm
  • Height (mm)
    1690 mm
  • Wheelbase (mm)
    2690 mm
  • Front tread (mm)
    1610 mm
  • Rear tread (mm)
    1640 mm
  • Luggage capacity (litres)
    580 liters
  • Luggage compartment height (up to roof) (mm)
    931 mm
  • VDA luggage capacity, rear seat up (litres)
    580 liters
  • Min. running ground clearance (mm)
    190 mm
  • Departure angle (°)
    20 °

  • Fuel type
  • Combined (l/100km)
    4.8 l/100 km
  • Euro Class emission
    EURO 6 AP
  • Fuel grade - recommended
  • Euro class
    EURO 6 AP
  • Fuel tank capacity (l)
    55 l
  • Sound level stationary (dB(A))
    69.0 dB(A)
  • Sound level drive by (dB(A))
    69.0 dB(A)
  • Fuel Combined WLTP (l/100 km)
    5.8 l/100 km
  • CO2 Combined WLTP (g/km)
    132 g/km
  • Valve mechanism
    16-Valve DOHC, VVT-iE (intake), VVT-i (Exhaust)
  • Fuel injection system
  • Displacement (cc)
    2487 ccm
  • Maximum output (kW@rpm)
    163 kW@rpm
  • Maximum torque (Nm@rpm)
    221/3600-5200 Nm@rpm
  • Maximum output (DIN hp)
    222 DIN hp
  • Electric Front Motor: Maximum output (kW)
    88 kw
  • Electric Front Motor: Maximum voltage (V)
    650 v
  • Hybrid vehicle battery: Type
  • Hybrid vehicle battery: Voltage (nominal) (V)
    244.8 v
  • Hybrid vehicle battery: Number of modules
  • Hybrid vehicle battery: Capacity Ah (hr)
    4.3 Ah
  • Transmission type
  • Maximum speed (km/h)
    180 km/h
  • Acceleration 0-100 km/h
    8.1 seconds
  • Drag coefficient
  • Suspension Front
  • Suspension Rear
  • Brakes Front
  • Brakes Rear
    Ventilated Disc 1-Cylinder
  • Gross Vehicle Weight - Total (kg)
    2215 kg
  • Kerb weight (kg)
    1655-1730 kg
  • Towing capacity with brakes (kg)
    1525 kg
  • Towing capacity without brakes (kg)
    750 kg
  • Kerb weight min (kg)
    1655 kg
  • Number of seats
    5 seats
  • Minimum turning radius (m)
    5.5 m

  • Bluetooth® hands-free system
  • Digital Audio Broadcast (DAB)+
  • 9 speakers
  • JBL premium sound system
  • Voice recognition
  • 10.5" multimedia display
  • Cloud Navigation
  • MyT Connected Services
  • Smart voice assist
  • Smartphone Integration (wireless Apple CarPlay and wired Android Auto™)
  • Toyota Smart Connect
  • USB Type-A and USB Type-C connectors
  • Temporary spare wheel
  • 19" GR SPORT glossy black alloy wheels with fine line cutting (5-double-spoke)
  • Smart Entry & Start System
  • Follow-me-home headlights
  • Dusk sensor
  • Rain sensor
  • Boot door release with push button
  • Power boot
  • Remote boot door release on key
  • Remote boot door release in cabin
  • Power-adjustable door mirrors
  • Heated door mirrors
  • Automatically retractable door mirrors
  • Puddle lamps on door mirrors
  • Smartphone remote door lock
  • Smartphone remote door lock notifications
  • Smartphone remote hazard lights notifications
  • Smartphone remote hazard lights system
  • Smartphone remote open window notifications
  • Dual-zone automatic air conditioning
  • Push-button start
  • Manual telescopic steering wheel
  • Manual tilting steering wheel
  • Heated steering wheel
  • Analogue tachometer
  • Electric Power Steering (EPS)
  • Paddle shifts
  • Electrochromatic rear-view mirror
  • Rear-view camera display in audio screen
  • Dynamic guide lines on rear-view camera display
  • Pollen air filter
  • Clean air filter
  • Rear passenger air vents
  • Central armrest
  • Power-sliding driver seat
  • Power-reclining driver seat
  • Power-height-adjustable driver seat
  • Power-adjustable lumbar support on driver seat
  • Memory function on driver seat
  • Heated driver & front passenger seats
  • Rear door armrests
  • Reclining rear seats
  • 60:40 split-folding rear seats
  • Toyota Easy Flat system
  • Front power windows
  • Rear power windows
  • One touch auto up & down function on all power windows
  • Illuminated entry system
  • Lamp on driver sun visor
  • Lamp on passenger sun visor
  • Mirror on driver sun visor
  • Mirror on passenger sun visor
  • Front 12V power outlet
  • Boot 12V power outlet
  • Wireless mobile phone charger
  • Power door lock
  • Speed-detecting automatic door lock
  • Child safety door lock
  • Key reminder warning
  • Coloured TFT information display
  • ECO-driving Indicator
  • Hybrid System Indicator
  • Audio switches on steering wheel
  • Information display switches on steering wheel
  • Telephone switch on steering wheel
  • Voice recognition switch on steering wheel
  • Adaptive Cruise Control switch on steering wheel
  • Lane Departure Alert switch on steering wheel
  • Adjustable Speed Limiter (ASL) switch on steering wheel
  • Automatic High Beam (AHB) on/off switch
  • Front overhead assist grips
  • Rear overhead assist grips
  • 12.3" screen for information display
  • Boot lamp (LED)
  • Centre room lamp (LED)
  • Driver & front passenger personal lamps (LED)
  • Power-height-adjustable front passenger seat
  • Power-reclining front passenger seat
  • Power-sliding passenger seat
  • Remote air conditioning system
  • White ambient foot lamp
  • Intelligent front parking sensors with automatic braking
  • Intelligent rear parking sensors with automatic braking
  • Rear-view camera
  • Pre-Collision System with Pedestrian and Cyclist Detection
  • Lane Departure Alert with Steering Control
  • Road Sign Assist
  • Automatic High Beam
  • Full-range Adaptive Cruise Control
  • Intelligent Adaptive Cruise Control
  • Adjustable Speed Limiter (ASL)
  • Brake Assist (BA)
  • Emergency Brake-light Signal (EBS)
  • Anti-lock Braking System (ABS) with Electronic Brake force Distribution (EBD)
  • High-mounted stop lamp (LED)
  • LED rear brake lights
  • Vehicle Stability Control (VSC)
  • Rear combination lamps (LED)
  • Automatic headlamp levelling
  • Daytime running lights (LED)
  • Blind Spot Monitor (BSM)
  • Turning signal integrated in door mirrors
  • Memory on speed limiter
  • Panoramic View Monitor
  • Immobiliser
  • Intrusion alarm
  • Motion sensor alarm
  • Tilt detection sensors
  • Glass-breaking alarm sensors
  • Hill-start Assist Control (HAC)
  • Driver Attention Alert
  • Lane Trace Assist
  • Rear Cross Traffic Alert with Brake Assist (RCTAB)
  • eCall emergency call system
  • Tyre Pressure Warning System (TPWS)
  • Trailer Sway Control (TSC)
  • Bi-beam LED headlamps
  • Road Events
  • Turning signal (LED)
  • Supplemental Restraint System (SRS) airbags - 7 airbags
  • Front passenger airbag detector
  • Front passenger airbag on/off-switch
  • Front seat belt reminder
  • Adjustable front driver seat belt extender
  • Adjustable front passenger seat belt extender
  • Pre-tensioners and force limiters
  • Driver & front passenger Whiplash Injury Lessening (WIL) seats
  • ISOFIX seat fixing
  • Rear seat belt reminder
  • Rear headrests (3)
  • Rear seat reminder system (RSRS)
  • Drive mode selector
  • Dual exhaust pipes
  • GR SPORT rear suspension
  • GR SPORT suspension tuning
  • Rear spoiler
  • Attitude Black roof rails
  • Single compartment glovebox
  • Lockable glovebox
  • Front bottle holders
  • Rear bottle holders
  • 1.5 litre bottle holder
  • Front cup holders
  • Rear cup holders
  • Rear passenger coat hooks (2)
  • Passenger-only seatback pocket
  • Rear console box
  • Retractable tonneau cover
  • Dual-level deckboard
  • Double-sided boot floor (carpet & plastic)
  • Attitude Black protection moulding on side doors

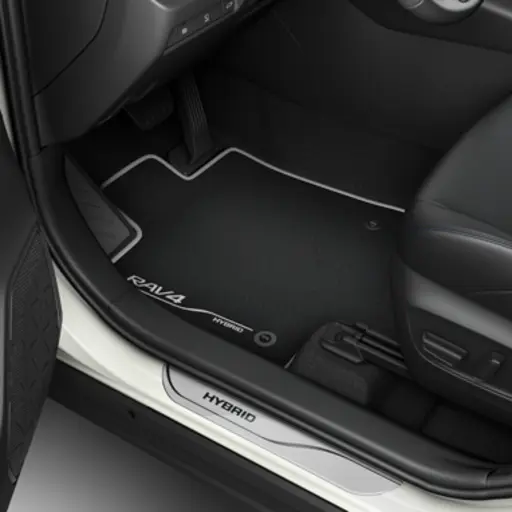

  • Driver & front passenger floor mats
  • Floor mats
  • LED front light guide
  • LED rear light guide
  • Attitude Black rear spoiler
  • Attitude Black door mirrors
  • Body-coloured door handles
  • Privacy glass on rear windows
  • Attitude Black front pillar design
  • Attitude Black wheel arch moulding
  • Attitude Black roof
  • Shark-fin antenna
  • Attitude Black shark-fin antenna
  • Black painted insert on boot door
  • GR SPORT badge on boot door
  • GR SPORT front fog lamps (LED)
  • GR SPORT upper front grille
  • Hybrid engine badge
  • Piano black surrounds on front fog lamps
  • Soft-touch texture on upper dashboard
  • Silver insert on upper dashboard
  • Soft-touch texture on lower dashboard
  • Silver surround on analogue tachometer
  • Silver surround on Hybrid System Indicator
  • 3-spoke leather steering wheel
  • Chrome insert on steering wheel
  • Piano black centre console
  • Chrome insert on centre air vents
  • Chrome insert on side air vents
  • Leather gear shift knob
  • Chrome gear shift knob surround
  • Silver surround on gear shift console
  • Electronic parking brake
  • Leather-like front door trim
  • Leather-like front door armrests
  • Silver insert on front door assist grips
  • Satin chrome interior door handles
  • Soft-touch rear door trim
  • Rear armrest
  • Black roof lining
  • Open tray on passenger dashboard
  • Black centre air vents
  • Black lower driver dashboard
  • Black lower passenger dashboard
  • Black upper dashboard
  • Gunmetal insert on front door assist grips
  • Gunmetal insert on steering wheel
  • Gunmetal insert on upper dashboard
  • Gunmetal surround on gear shift console
  • Illuminated power window switches
  • Piano black insert on centre console
  • Piano black surround on multimedia display screen
  • Silver stitching on front armrest
  • Silver stitching on front seats
  • Silver stitching on steering wheel
  • Silver stitching on upper dashboard
  • White ambient lighting on front cup holders
  • White ambient lighting on open tray
  • White lighting on tachometer
  • Black painted upper front grille
  • Black Toyota emblem
  • Dark silver rear under-run
  • GR SPORT badge on upper front grille
  • GR SPORT Midnight Black rear bumper
  • Silver stitching on front door trim
  • Silver stitching on gear shift boot

RA - GR SPORT - MPV 5 Doors (LWB)
  • 2690
  • 4620
  • 1610
  • 1855
  • 1640
  • 1855
  • 1690

  • RA - GR SPORT - MPV 5 Doors (LWB)
  • RA - GR SPORT - MPV 5 Doors (LWB)
  • RA - GR SPORT - MPV 5 Doors (LWB)

Standard equipment


From intelligent safety systems to intuitive interior features, every Toyota leaves the factory with a wealth of essential equipment as standard. Find out more about the standard equipment available on your Toyota vehicle below:

Black painted upper front grille
Black painted upper front grille
Black Toyota emblem
Black Toyota emblem
Dark silver rear under-run
Dark silver rear under-run
GR SPORT badge on upper front grille
GR SPORT badge on upper front grille


Optional equipment


Whatever your lifestyle, Toyota provides a wide range of optional equipment to help you get the most from your car. From styling accessories and smart technology to practical features designed for all driving conditions, you're geared up for safe and comfortable journey. The complete list of optional equipment that’s been designed and built specifically for your Toyota vehicle, can be found below:

Toyota ProTect Pack
Toyota ProTect Pack
Toyota ProTect Pack
Toyota ProTect Pack
ProTect preserves the residual value of your Toyota and keeps it looking its best. Originally developed by NASA, this high-tech protective shield creates a ceramic hard finish over exterior paintwork and alloy wheels. Once applied by your retailer, ProTect repels dirt, dust, sand, traffic grime and UV rays for up to 5 years. Easy to maintain, ProTect will not interfere with your usual Toyota valet schedule: simply wash your car as normal. Please ask your retailer for full details.
Adventure Pack
Adventure Pack
Adventure Pack
Adventure Pack
Adventure Pack



Feel safe and secure with Toyota safety sense

Toyota Safety Sense is a suite of driver assistance technologies that help with everything from detecting potential collisions to monitoring road signs, to keep you safe.

Airbags are positioned throughout the cabin

Seven SRS airbags are installed throughout the vehicle's interior, ensuring that In the event of a collision, every occupant of the car is well protected.


Choose hybrid for a more efficient future

As the pioneer of hybrid powertrain technology, we have set the standard and continued to develop innovative ways to travel efficiently through modern cities and beyond.

A car that's connected to your world

From locating your car to planning a journey, MyT is a set of connected digital services. Through the MyT app, you can stay in contact with your car, opening up a world of possibilities that make life more convenient.

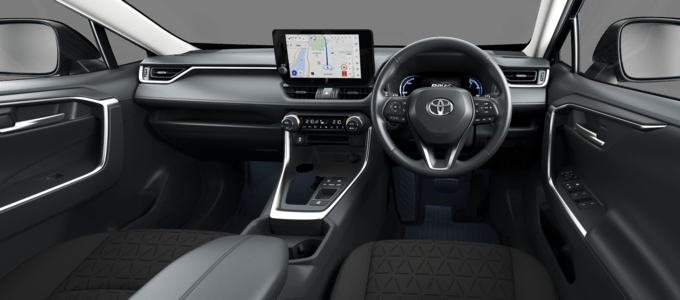

A wealth of multimedia possibilities

Featuring Bluetooth phone integration, MP3/WMA music compatibility and Toyota Real Time Traffic powered by Tomtom, Toyota Touch 2 puts all the information and media you need at your fingertips.
