- Price is updated The price of your configuration is €34,900
Selected payment
€34,900Cash purchase
Finance
Everything in detail
Proace Max Chassis specifications

View specifications

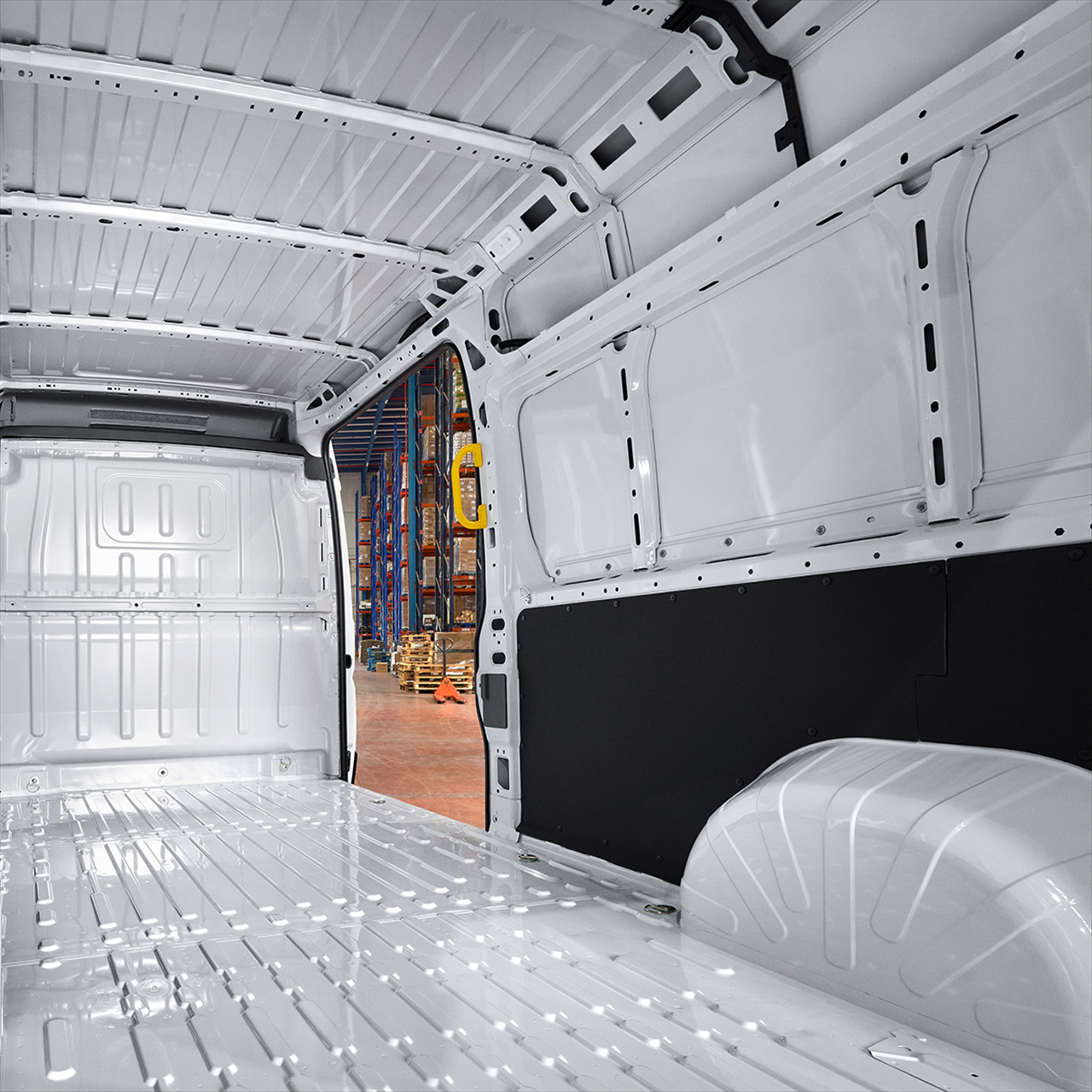

Space and Room
High-quality fabrics and soft ornamentation add pleasingly human touches to your interior, transforming the open cabin into an inviting space where everyone feels comfortable.
Exterior dimensions
- Length (mm)
7383 mm
- Width (mm)
2350 mm
- Height (mm)
3500 mm
- Wheelbase (mm)
4035 mm
- Front Tread (mm)
1810 mm
- Rear Tread (mm)
1790 mm
Interior dimensions
- Number Of Seats
3 seats
Engine
Drive with pure emotion, powered by a high-performance engine that helps you take on any journey with confidence.
Environmental Performance
- Euro Class emission
EURO 6 EA
- Euro Class
EURO 6 EA
- Sound Level Stationary (dB(A))
79.0 dB(A)
- Sound Level Drive By (dB(A))
71.0 dB(A)
- Fuel Combined WLTP (l/100 km)
10 l/100 km
- CO2 Combined WLTP (g/km)
262 g/km
Performance
- Maximum Speed (km/h)
156 km/h
Engine
- Displacement (cc)
2184 ccm
- Maximum Output (kW@rpm)
103 kW@rpm
- Maximum Torque (Nm@rpm)
350 Nm
- Maximum output (DIN hp)
140 DIN hp
- Conventional engine output (DIN hp)
140 DIN hp
Transmission
- Transmission Type
Manual
Suspension
- Suspension Front
Independent, MacPherson type (wishbones, coil springs, telescopic shock absorbers & anti-roll bar)
- Suspension Rear
Rigid tubular axle(parabolic longitudinal leaf springs,telesc. shock absorbers,flexible side buffers
Brakes
- Brakes Front
Disc
- Brakes Rear
Disc
Weights & towing capacity
- Gross Vehicle Weight (kg)
3500 kg
- Kerb Weight (kg)
1825-1992 kg
- Towing Capacity With Brakes (kg)
3000 kg
- Towing Capacity Without Brakes (kg)
750 kg
- Kerb weight min (kg)
1825 kg
Safety
Find peace of mind as you drive with Toyota T-Mate. Whether you’re reversing into a parking space or approaching a busy junction, T-Mate makes sure you're always in safe hands wherever you go.
- Fire extinguisher, 1kg powder
- Emergency light
- Safety hammer
- Spare wheel carrier under body
- Automatic High Beam (AHB)
- Projector halogen headlamps
- Rear combination lamps (bulb type)
- Cruise Control
- Hill-start Assist Control (HAC)
- Tyre Pressure Warning System (TPWS)
- Vehicle Stability Control Plus (VSC+)
- Intrusion alarm
- Glass-breaking alarm sensors
- Motion sensor alarm
- Lane Departure Alert with Steering Control
- eCall emergency call system
- Anti-tamper alarm
- Driver Attention Alert
- Lane Trace Assist (LTA)
- Pre-Collision System with Pedestrian and Cyclist Detection
- Road Sign Assist (RSA) with Traffic Sign Recognition (TSR)
- Intelligent Speed Assist
- Pre-disposition for rear-view camera
- Predisposition for breathalyser engine lock
- Rear crossmember
- Event Data Recording
- Rear seat belt reminder
- Front seat belt reminder
- Driver & passenger front airbag
- Handbrake
- Without bulkhead
Styling
Make a statement with elegant design elements and eye-catching details to make your vehicle stand out from the crowd.
- Black front bumper
- Black painted upper front grill
- Smoke tinted (30%) privacy glass
- Roof antenna
- 3-spoke urethane steering wheel
- Black centre air vents

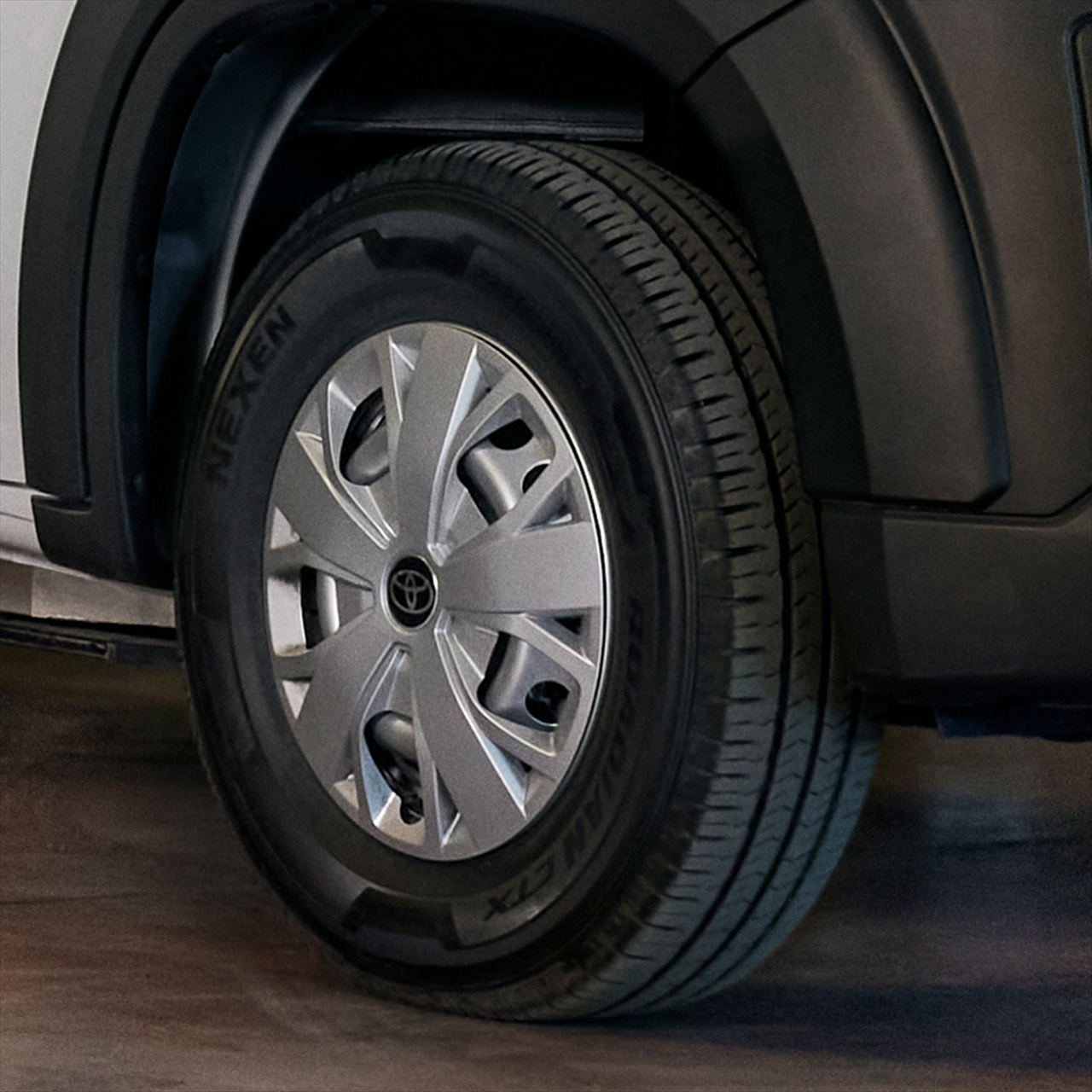

Wheels
Choose from Toyota's selection of premium wheels to suit your driving style.
- Black small centre caps
- Full spare steel wheel
Comfort
Sit back and relax in a car so comfortable that it feels like home – from ample space to stretch your legs to heating that keeps you warm when it's cold outside.
- Dusk sensor
- Power-adjustable door mirrors
- Heated door mirrors
- Manually retractable door mirrors
- Standard arm door mirrors
- Manual air conditioning
- Manually adjustable lumbar support on driver seat
- Boot lamp (bulb type)
- Monochrome TFT information display
- Audio switches on steering wheel
- Telephone switch on steering wheel
- Lane Departure Alert switch on lower driver dashboard
- 3.5" screen for information display
- Deadlock on rear doors
- Speedometer (km/h)
- Without 2nd row rear seats
- Manual day/night rear-view mirror

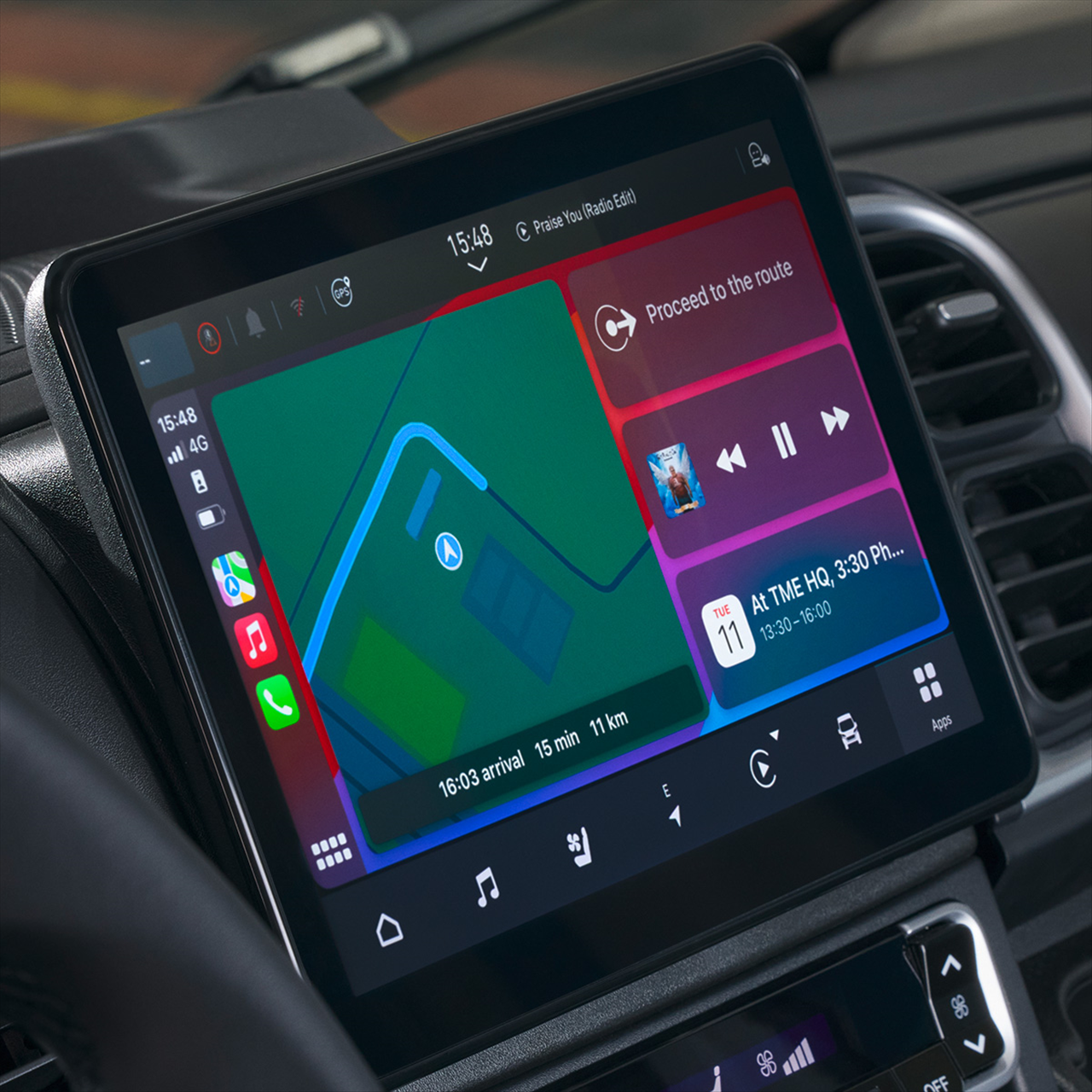

Multimedia
Experience an intuitive multimedia system that seamlessly delivers real-time information, making it easier than ever for you to focus on the road ahead.
- Bluetooth® hands-free system
- Digital Audio Broadcast (DAB)+
- Radio player
- 4 speakers
- 5" touch screen display

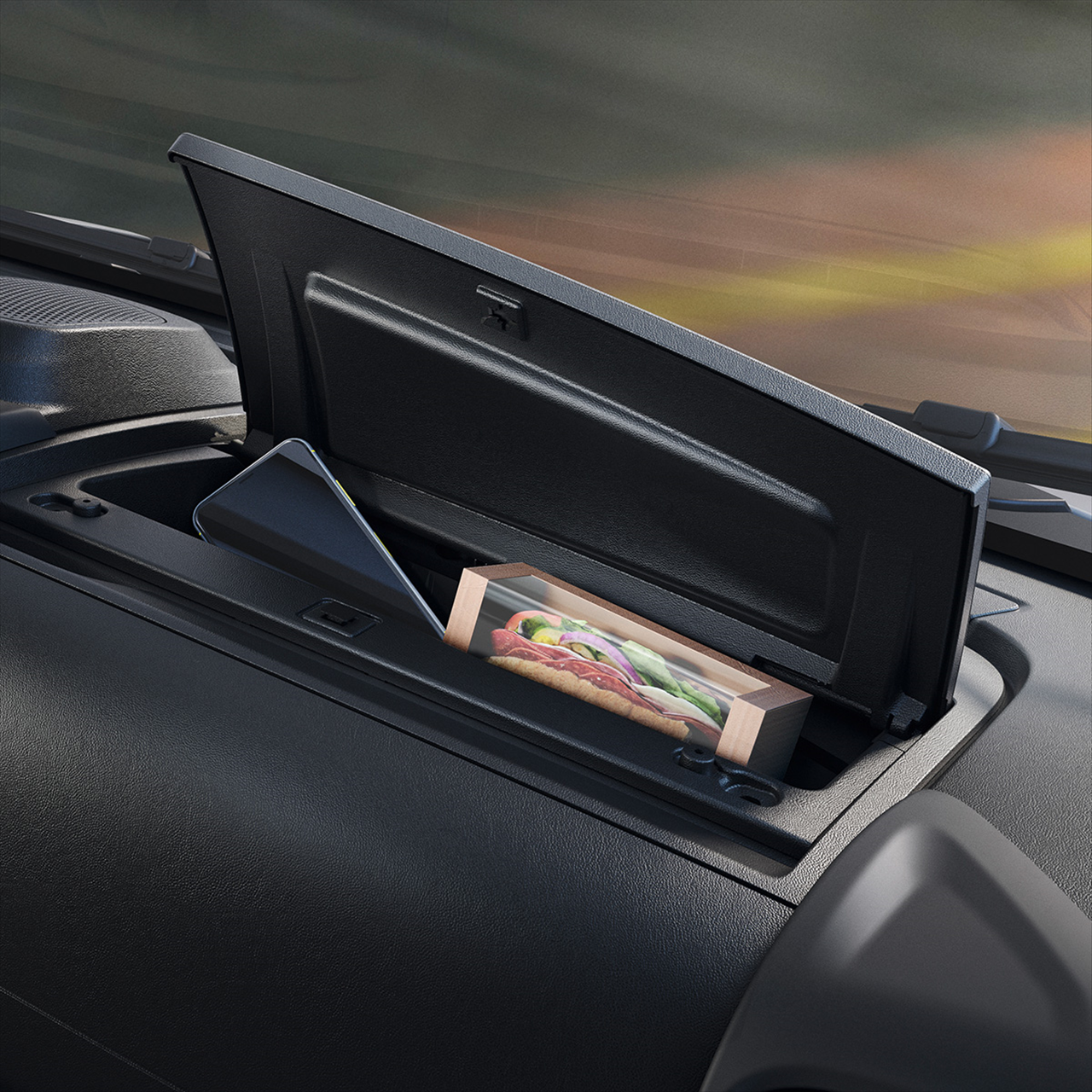

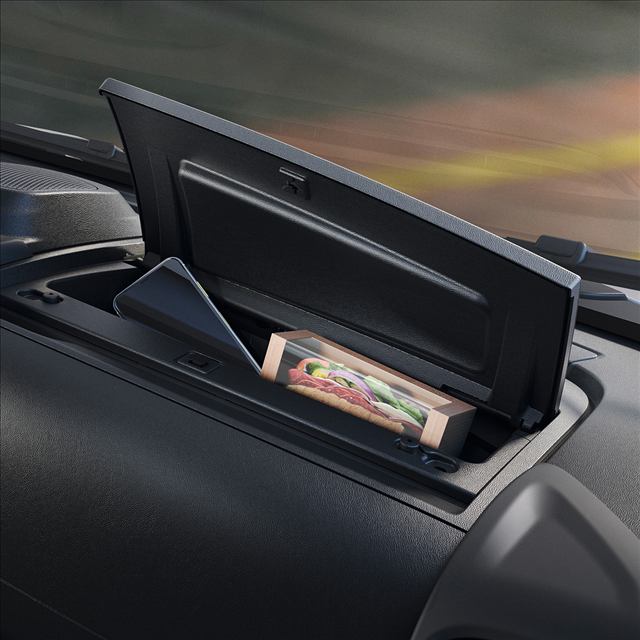

Storage
This fantastic interior space offers plenty of room for all ‒ including ample legroom to comfortably stretch your legs, and a spacious boot to fit everything you’ll need.
- Electric converter box
